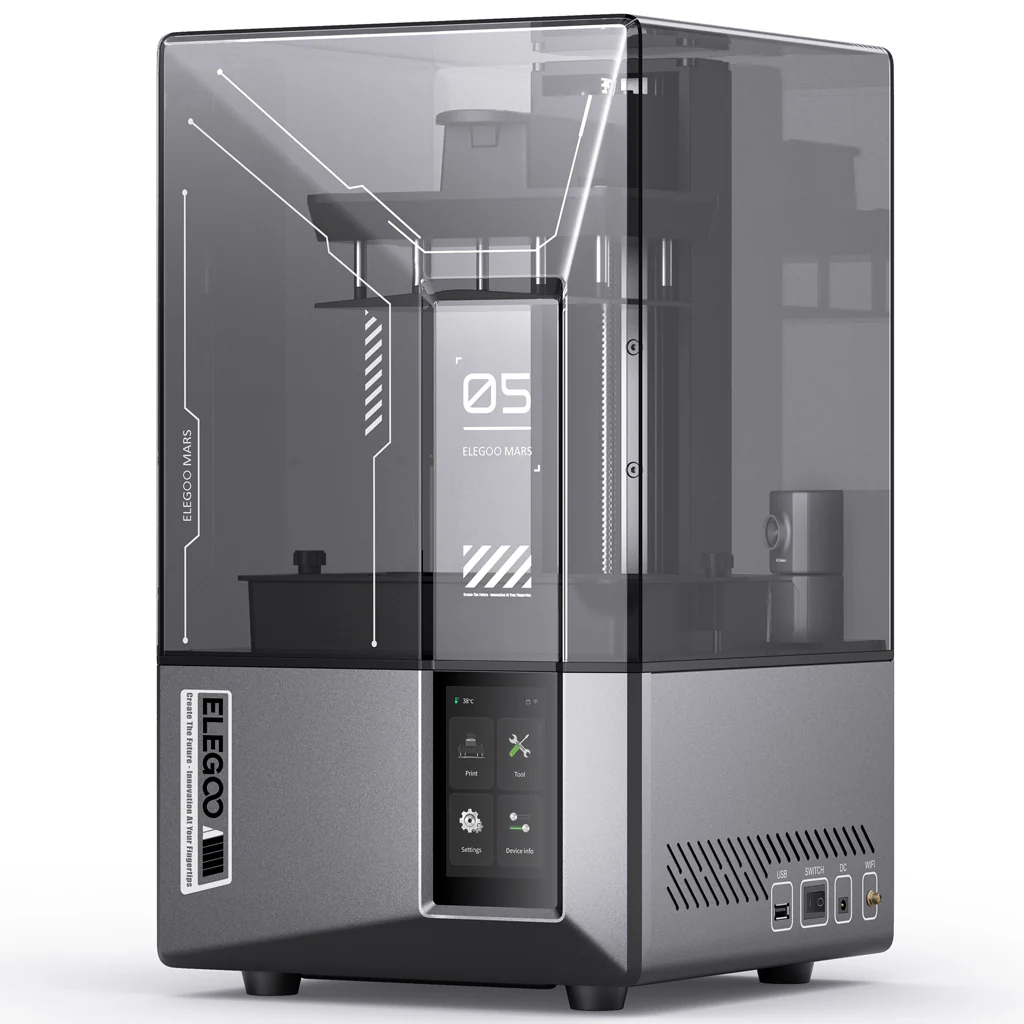

ELEGOO MARS 5 ULTRA

Overview of the Elegoo Mars 5 Ultra

The Elegoo Mars 5 Ultra 3D printer resin offers a remarkable printing experience for both professionals and enthusiasts alike. Designed with cutting-edge technology, this resin provides unmatched clarity and precision.

Features and Benefits

One of the standout qualities of the Elegoo Mars 5 Ultra resin is its exceptional detail retention during the printing process. This ensures that every intricate element of your design is accurately replicated, resulting in stunningly realistic prints.

Compatibility and Usage

The Elegoo Mars 5 Ultra resin is compatible with various printer models, making it a versatile choice for your 3D printing needs. Its user-friendly formulation guarantees easy handling, allowing for a seamless printing experience.

Tech Specs:

BUILD VOLUME: 153.36 x 77.76 x 165 mm³

PRINTING SPEED: MAX 150mm/h

LAYER THICKNESS: 0.01-0.2mm

XY RESOLUTION: 18×18µm (8520×4320)

Z-AXIS ACCURACY: 0.02mm

PRINTING TECHNOLOGY: MSLA

LIGHT SOURCE: COB Light Source (wavelength 405nm)

LCD SCREEN SIZE: 7-inch 9K Mono LCD

LCD SCREEN PROTECTOR: 9H hardness tempered glass

CONNECTION METHOD: USB Interface & WiFi

SYSTEM: EL3D-4.0

HEAT DISSIPATION METHOD: 3 copper heat pipes + single fan

OPERATION SCREEN: 4.0-inch Capacitive Touch Screen

LANGUAGES: Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese

AIR PURIFIER: USB connection unavailable, compatible with Mars Mate air purifier

RESIN: Supports most resins on the market (water-washable, standard, ABS-like, plant-based, etc.)

OTHER FUNCTIONS: Tilt Release Technology, One-Click Automatic Leveling, Self-Check & Overheat Protection, Al Camera (Empty Build Plate Detection, Warp Detection, Real-Time Monitoring, Time-Lapse Recording), Smart Mechanical Sensor (Resin Shortage Alarm, Residue Detection Alarm, Leveling Failure Alarm), Power-Loss Resume Printing.

POWER REQUIREMENTS: 100-240V 50/60Hz 24V 3A

PRINTER DIMENSIONS: 260 x 268 x 451.5 mm³

NET WEIGHT: 8.8 kg

GROSS WEIGHT: 10.8 kg
