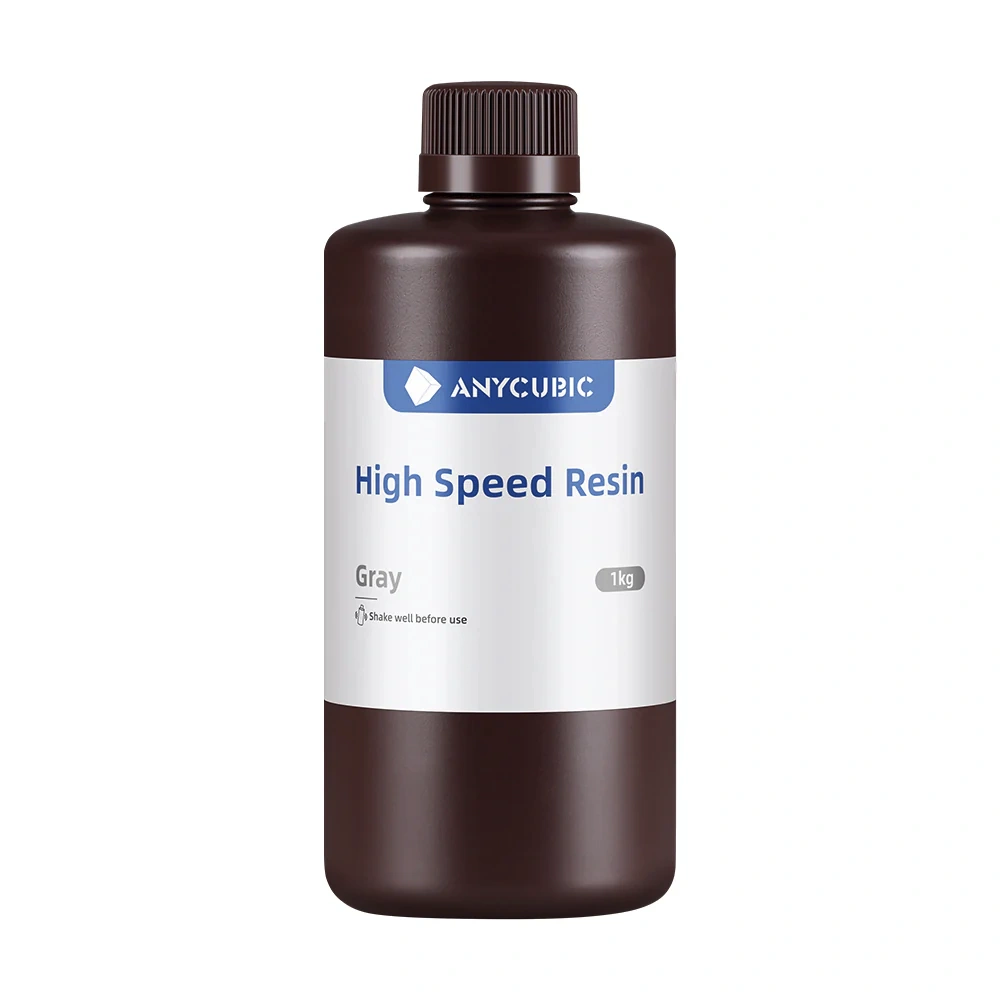

Anycubic Standard Resin HS

Anycubic High Speed Resin 2.0 is a photopolymer resin engineered for high-speed LCD/DLP 3D printing, offering enhanced flow characteristics, improved mechanical strength, and precise curing performance. It is optimized for efficient production workflows while maintaining detailed surface quality and dimensional stability.

Material Composition & Compatibility

• Material Type: Photopolymer resin
• Curing Wavelength: 365–405 nm
• Printer Compatibility: Compatible with all LCD/DLP 3D printers using UV light curing technology
• Optimal Use: Designed to perform best with Anycubic LCD printers

Physical Properties

• Viscosity: 75–85 mPa·s at 25°C
• Density: 1.14 g/cm³
• Low Viscosity Formulation: Enhances flowability, reduces heat buildup, and enables faster resin backflow during printing
• Shrinkage Rate: 5–6% for improved dimensional accuracy

Mechanical Properties

• Hardness: 83–85 HD
• Tensile Strength: 37–47 MPa
• Elongation at Break: 16–20%
• Bending Strength: 1700–3300 MPa
• Young’s Modulus: 1300–1500 MPa
• Impact Strength (Izod): 87 J/m
• Enhanced Toughness: Approximately 20% higher than previous generation resin

Printing Performance

• High-Speed Capability: Reduced viscosity improves print speed and efficiency
• Exposure Time (Normal Layers): 1.5–2.8 seconds
• Initial Layer Exposure: 15–25 seconds
• Layer Thickness (Typical): 0.05–0.1 mm
• Operating Temperature:
  • Printing: 20–50°C
  • Environment: 20–40°C

Surface Quality & Accuracy

• High Precision Curing: Enables sharp details and smooth surface finishes
• Low Deformation: Maintains structural integrity during and after curing
• Texture Retention: Produces consistent and long-lasting surface quality

Post-Processing Requirements

• Cleaning Solution: ≥95% Isopropyl Alcohol (IPA)
• Washing Duration: Minimum 3 minutes
• Curing Wavelength: 405 nm
• Curing Temperature: 18–30°C
• Curing Time: Approximately 3 minutes
• UV Intensity: 25,000–30,000 µW/cm²

Operational Characteristics

• Low-Odor Formulation: Designed to minimize irritation during use
• Ease of Cleaning: Low viscosity allows efficient removal of residual resin
• Thermal Stability: Reduces risk of localized overheating during printing

Application Scope

• Suitable for:
  • High-speed batch production
  • Large-format prints
  • Detailed prototypes
  • Functional parts requiring moderate mechanical strength
