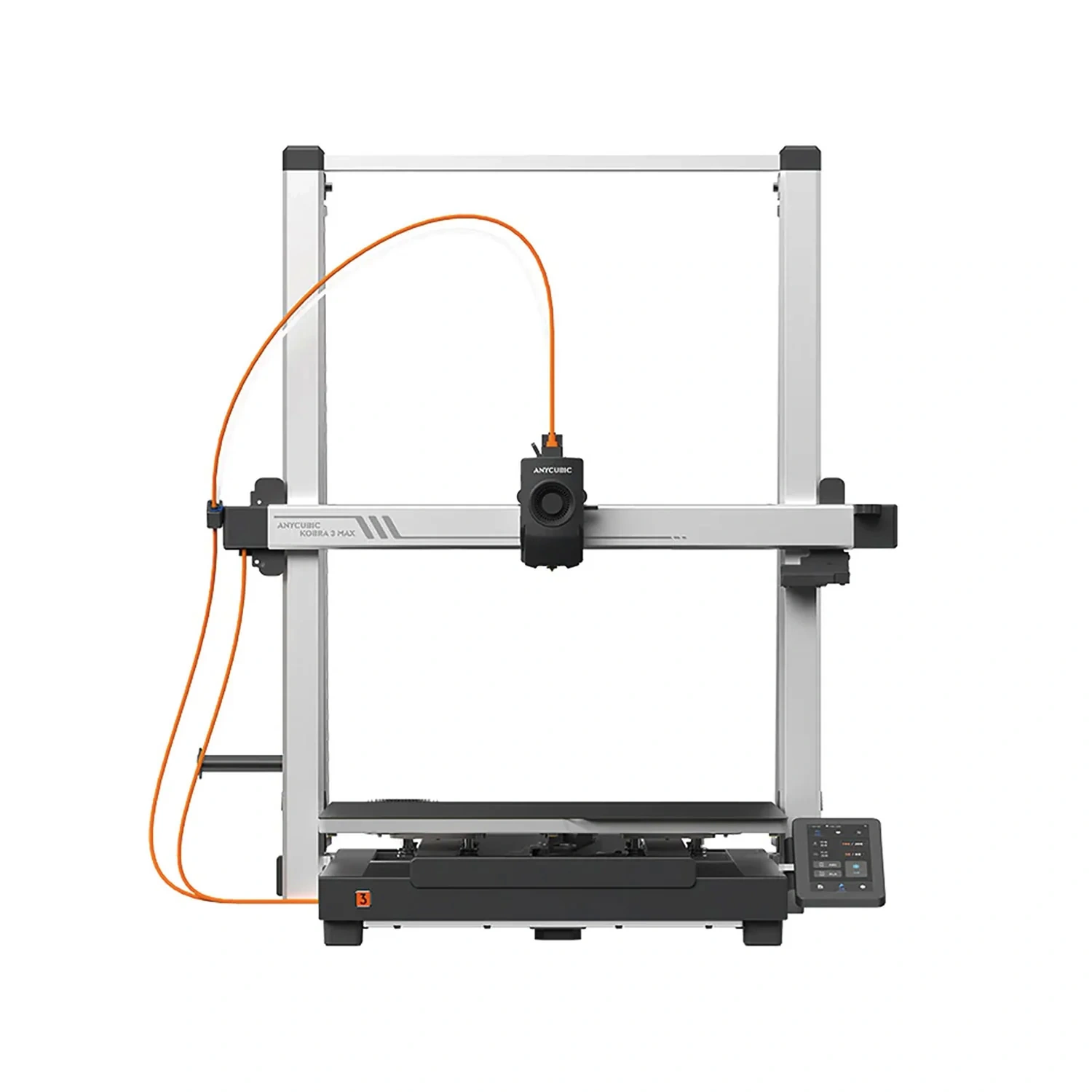

Anycubic Kobra 3 max

The Anycubic Kobra 3 Max is a next-generation large-format FDM 3D printer engineered for high-speed, high-volume production and precision printing. Designed for professionals, makers, and industrial prototyping, it combines an expansive build volume, advanced auto-leveling, and intelligent printing features to deliver consistent, high-quality results at scale.

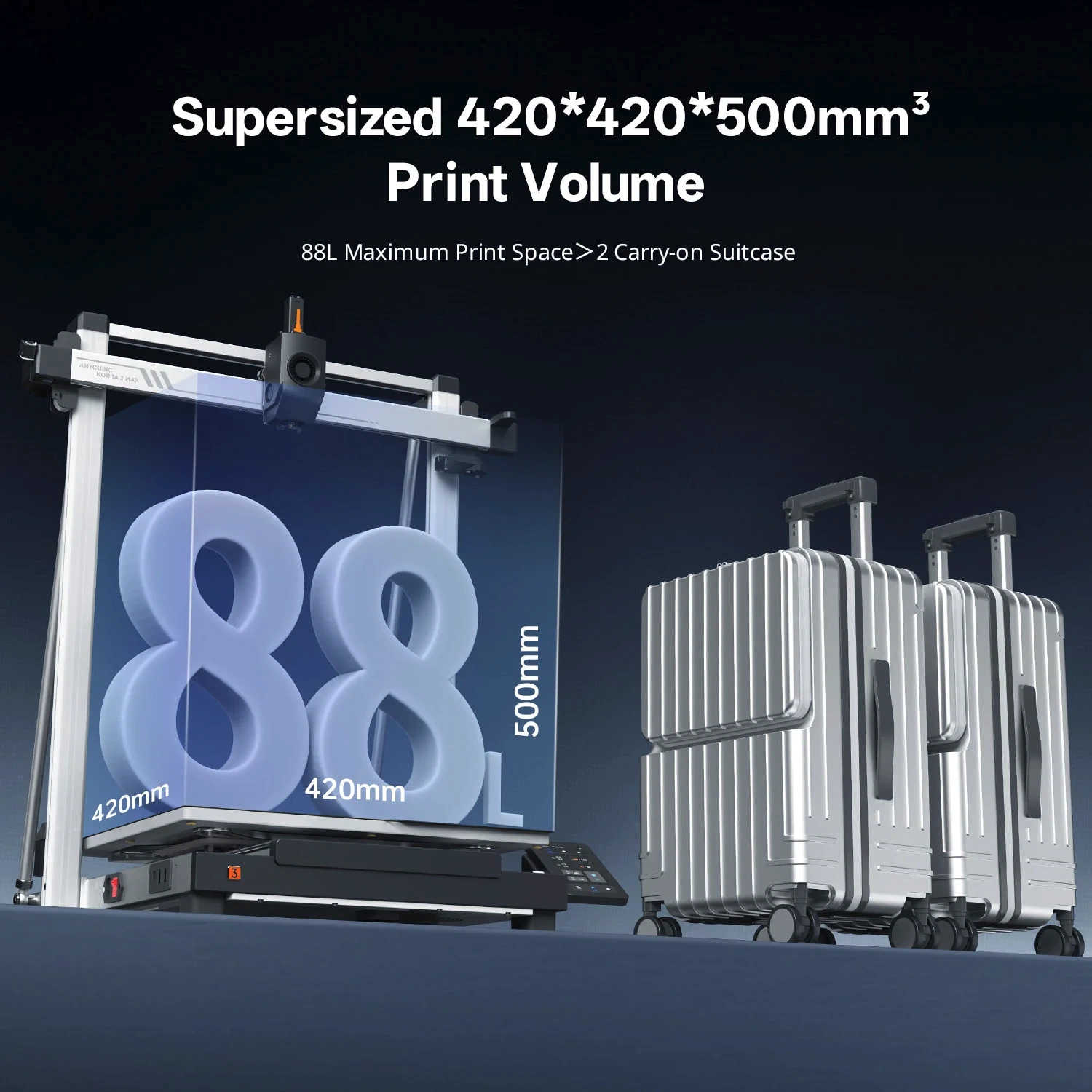

Massive Build Volume for Large-Scale Printing

The Anycubic Kobra 3 Max features an impressive 420 × 420 × 500 mm (88L) build volume, allowing users to print ultra-large models in a single job. This reduces the need for part segmentation, post-processing, and assembly, making it ideal for functional prototypes, cosplay parts, and batch production.

• Build Volume: 420 × 420 × 500 mm
• Optimized for large models and multi-part production
• Reduces filament waste and assembly complexity

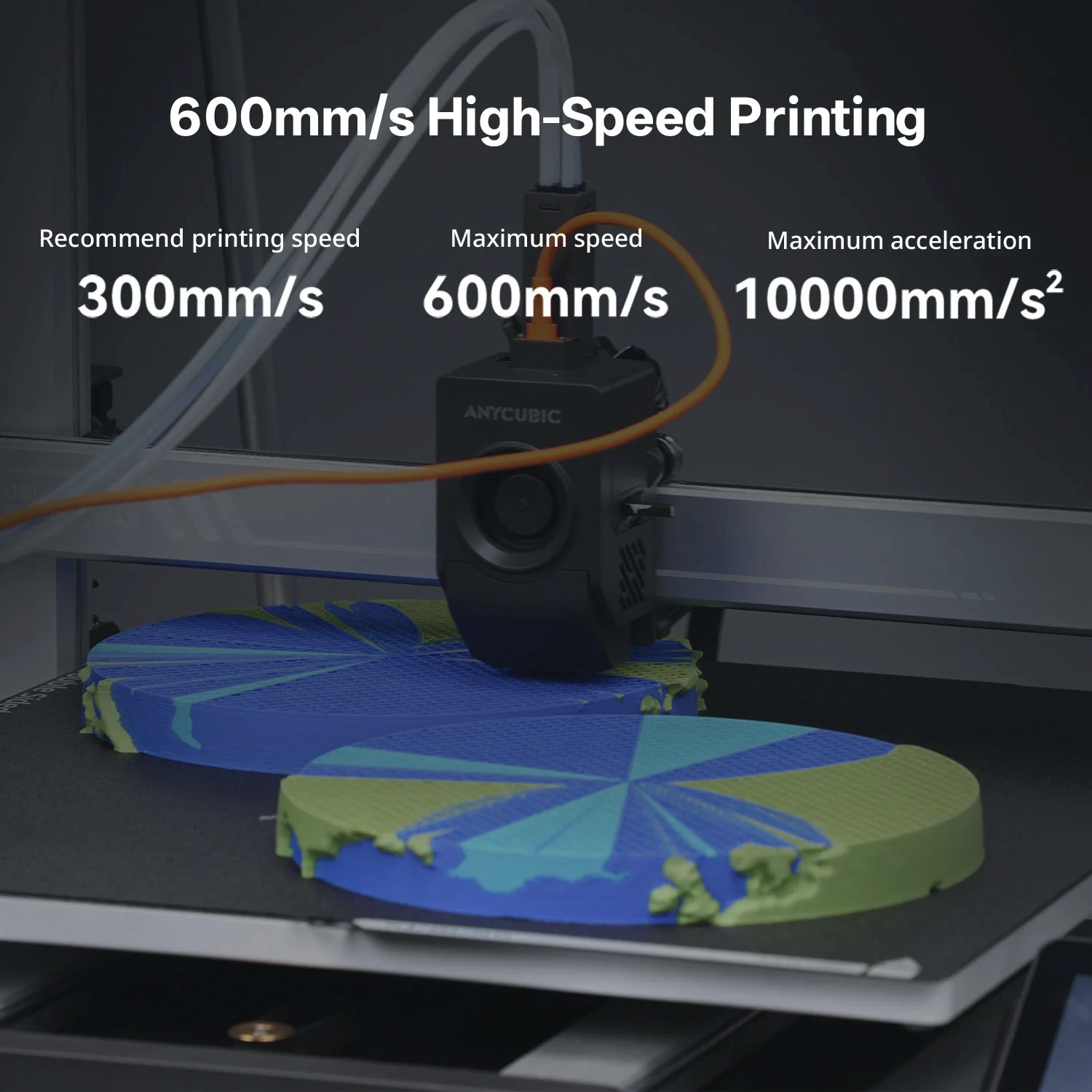

High-Speed Performance & Precision Engineering

Engineered for speed without compromising accuracy, the Kobra 3 Max supports:

• Maximum Print Speed: 600 mm/s
• Recommended Speed: 300 mm/s
• Maximum Acceleration: 10,000 mm/s²

This high-speed capability is supported by advanced motion control systems and vibration compensation, ensuring stable and precise prints even at elevated speeds.

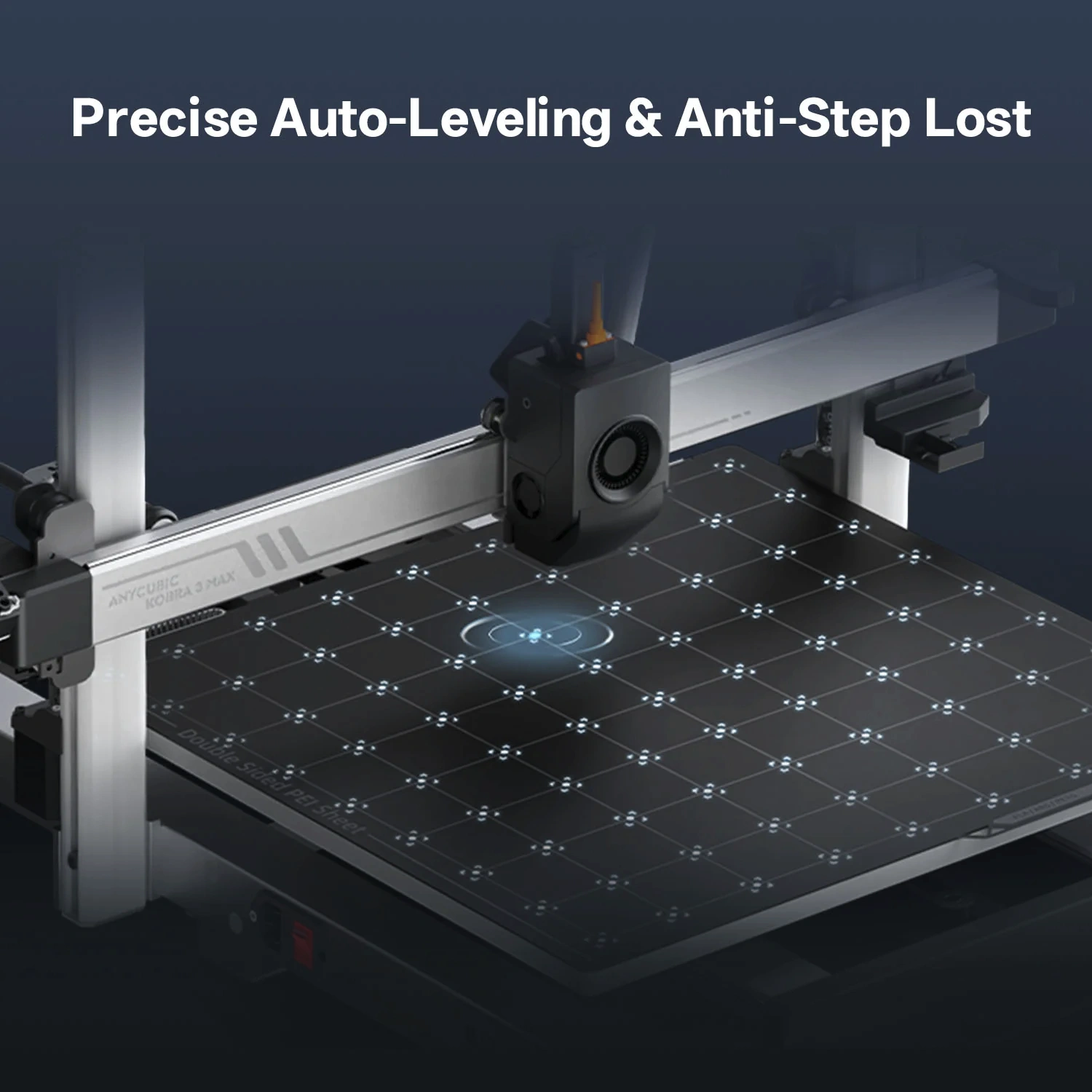

Advanced Auto-Leveling & Motion Stability

Equipped with LeviQ 3.0 Auto-Leveling, the printer ensures consistent first-layer adhesion and simplified setup:

• Automatic bed leveling with Z-offset adjustment

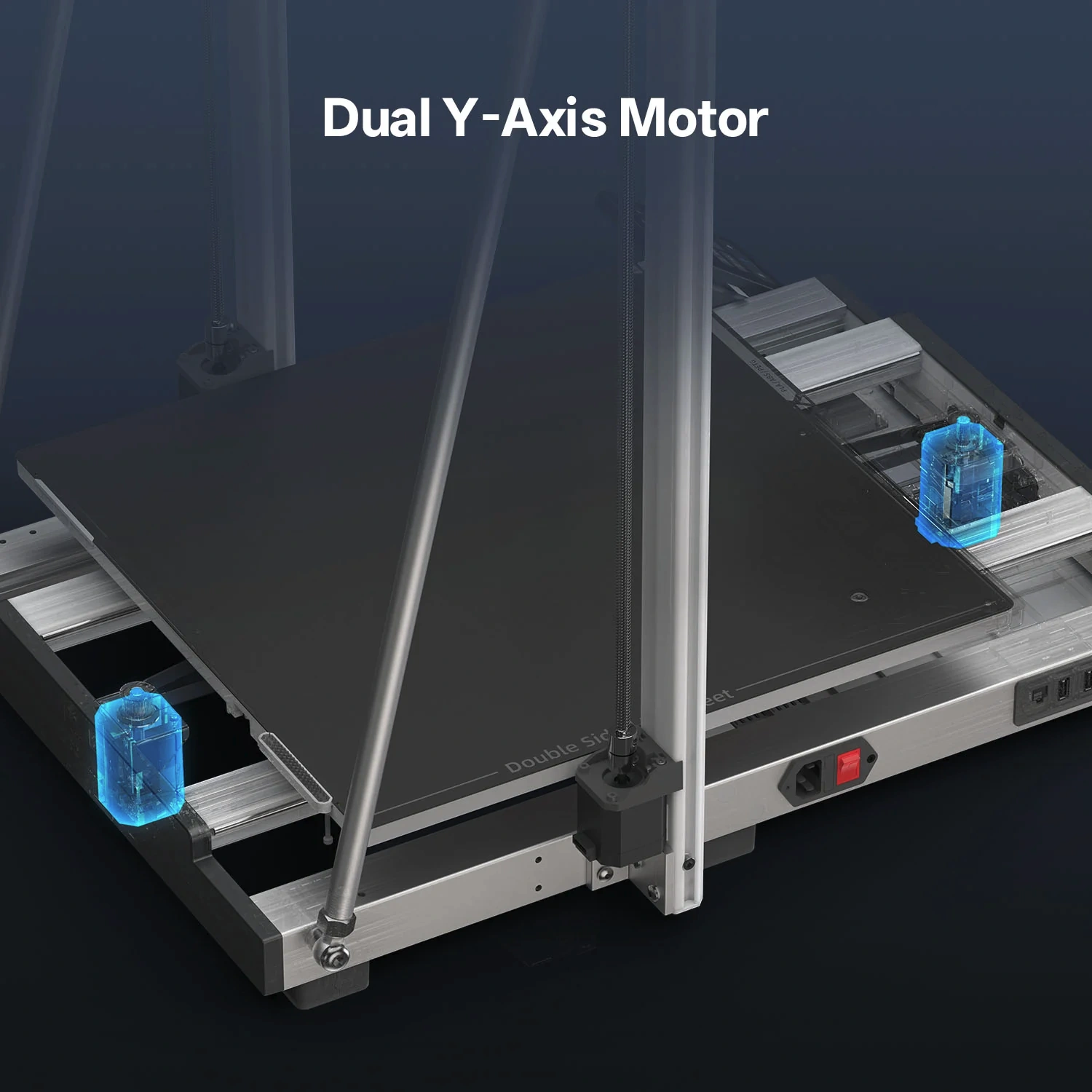

• Dual Y-axis motors to minimize layer shifting
• Anti-skip belt tensioning system
• One-click resonance compensation for vibration control

These features enhance print reliability and reduce manual calibration efforts.

High-Temperature Hotend & Material Compatibility

The Kobra 3 Max includes a high-performance extrusion system designed for versatility:

• Max Nozzle Temperature: 300°C
• Standard Nozzle Diameter: 0.4 mm (expandable to 0.6 / 0.8 mm)
• Hotend Design: Quick-release with ceramic composite throat tube

Supported Filaments:

• PLA
• PETG
• TPU (limited compatibility with certain systems)

This allows users to print a wide range of functional and aesthetic parts.

Heated Bed & Build Surface

• Max Bed Temperature: 90°C
• Build Plate: PEI spring steel magnetic platform

The heated bed ensures strong adhesion and easy print removal, while the PEI surface improves print consistency.

Intelligent Features & Smart Printing

The printer integrates multiple smart systems for enhanced usability:

• AI-based spaghetti detection
• Filament runout detection with auto-resume
• Filament entanglement detection
• Power loss recovery
• Object skipping during print jobs
• Pressure advance and flow calibration support

These features help prevent print failures and improve efficiency during long print sessions.

Multi-Color Printing Capability

Supports 4-color and 8-color printing configurations, enabling complex, multi-material or multi-color prints for advanced applications such as prototypes, artistic models, and product design.

Software Ecosystem & Connectivity

The Anycubic Kobra 3 Max integrates with a modern software ecosystem:

• Anycubic Slicer Next (based on Orca slicer, optimized for precision)
• Anycubic App for remote control and monitoring
• Print via USB, slicing software, or mobile app

This ecosystem enhances workflow efficiency and remote management.

User Interface & Build Quality

• Display: 4.3-inch capacitive touchscreen
• Noise Level: ≤ 60 dB (standard mode)
• Machine Dimensions: 706 × 640 × 753 mm
• Weight: 19 kg
• Frame: Gantry-style structure

The robust construction ensures stability during high-speed printing, while the intuitive interface simplifies operation.
